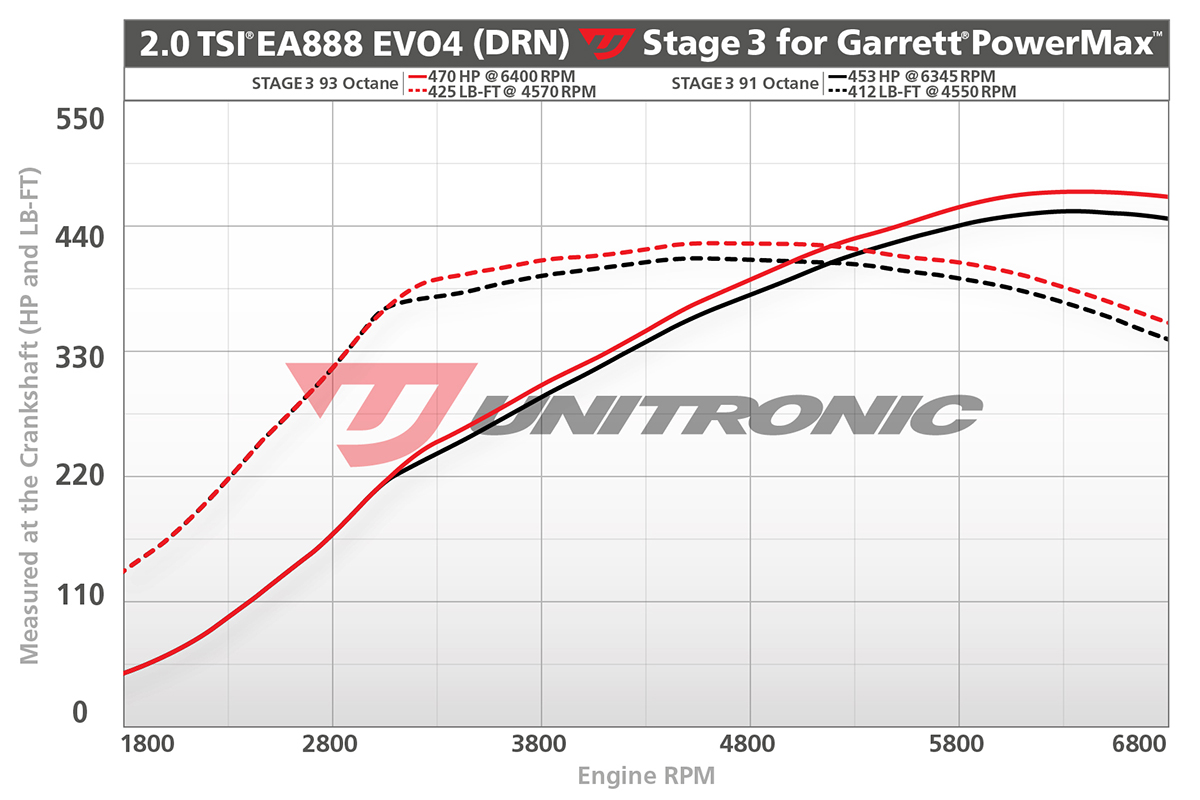

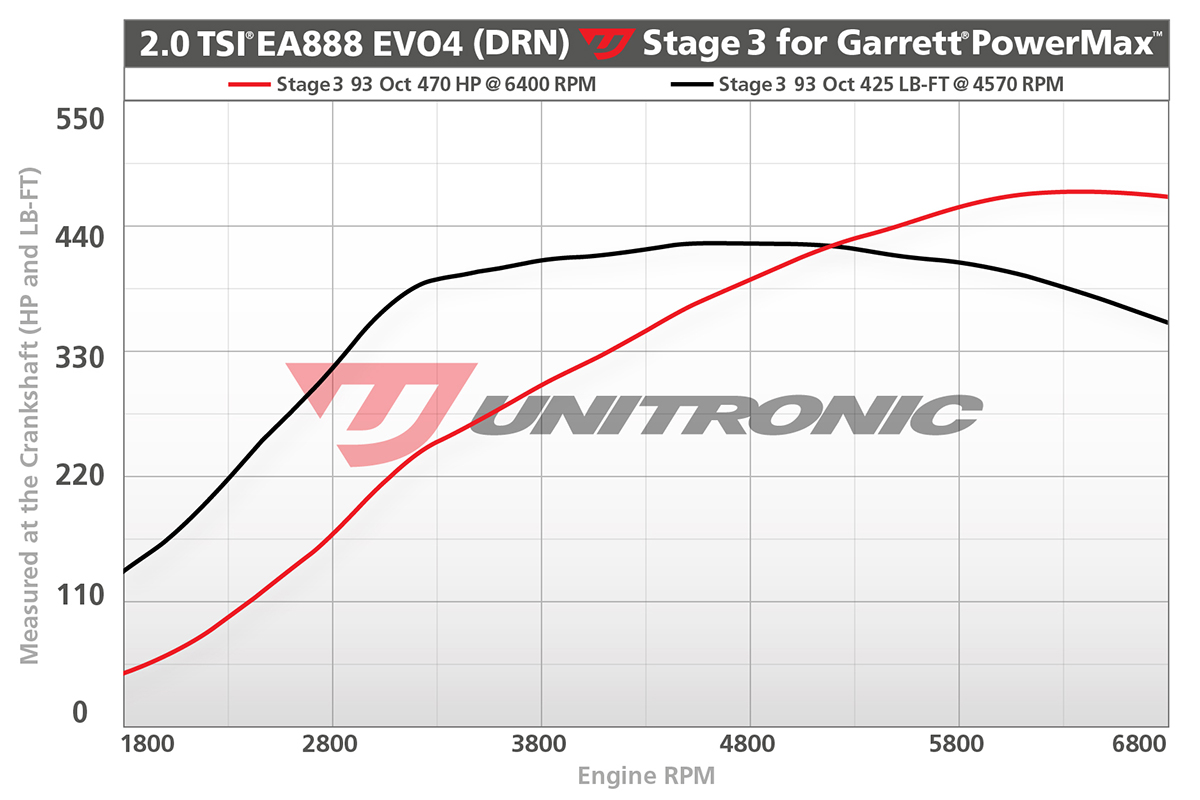

Unitronic® Stage 3 ECU/TCU Software is now available for the MK8 GTI® equipped with the 2.0TSI® EVO4 engine and Garrett PowerMax Turbocharger upgrade. With testing and validations completed, power outputs on the MK8 GTI are now increased by up to +204HP / +141LB-FT with Unitronic Stage 3 93 octane Performance Software for a total of 470HP / 425LB-FT. Stage 3 E85 support for the Garrett PowerMax Turbocharger is currently in development and coming soon. These new calibrations also include a new Start/Stop feature, which enables the vehicle to now remember the last set position and high-speed data logging via UniCONNECT+ for customers looking to gain greater insights about their vehicle's true performance as well.*
AVAILABLE MK8 GTI STAGE 3 TUNES

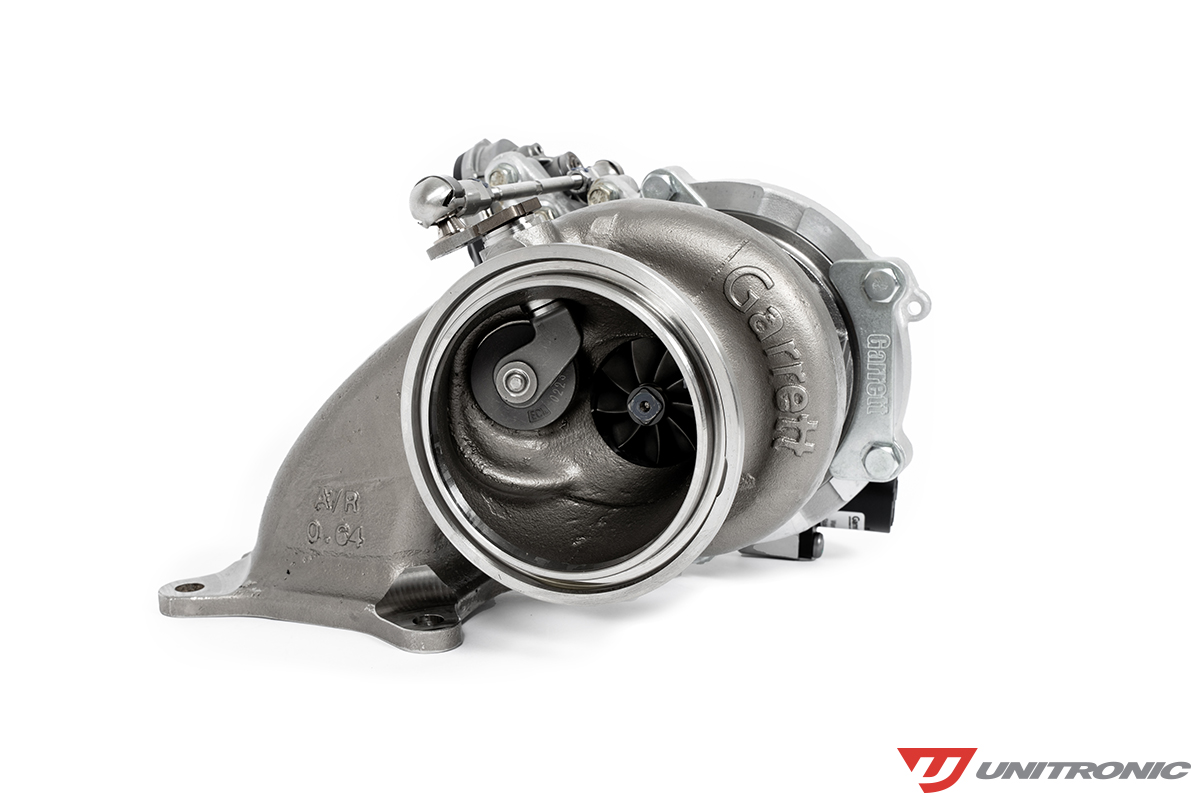

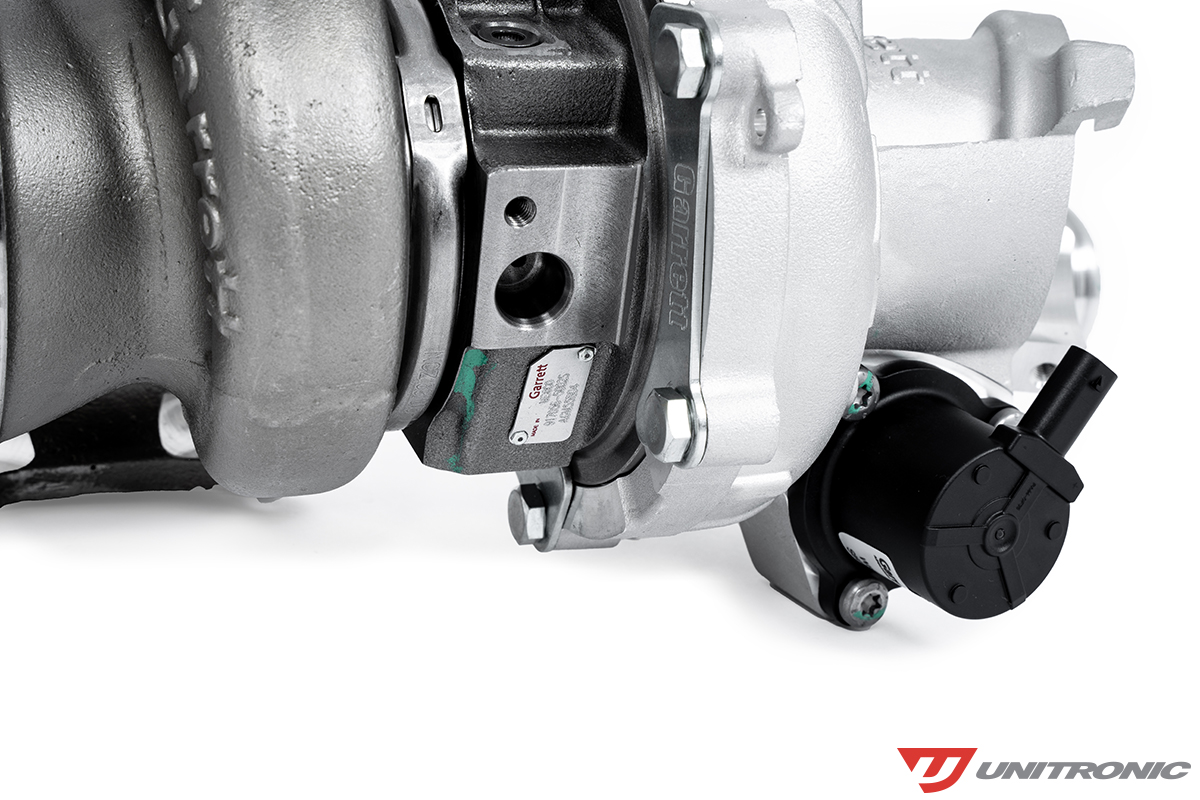

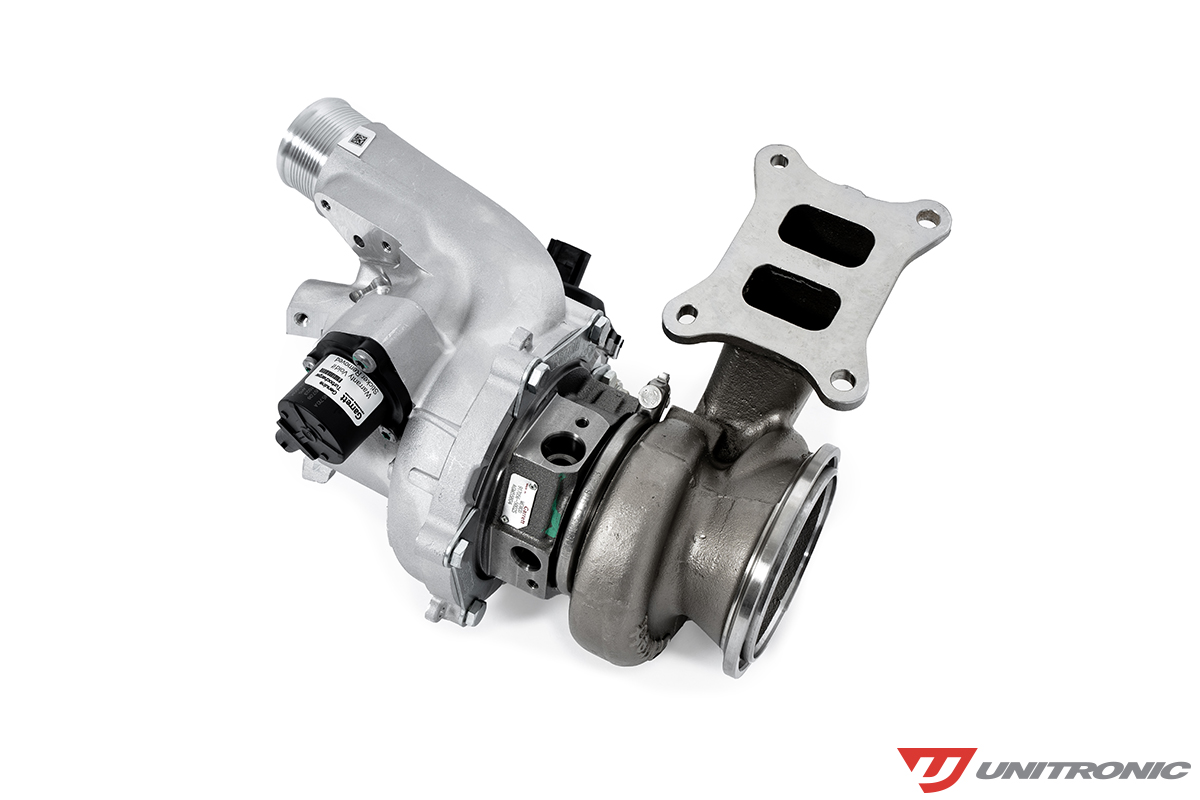

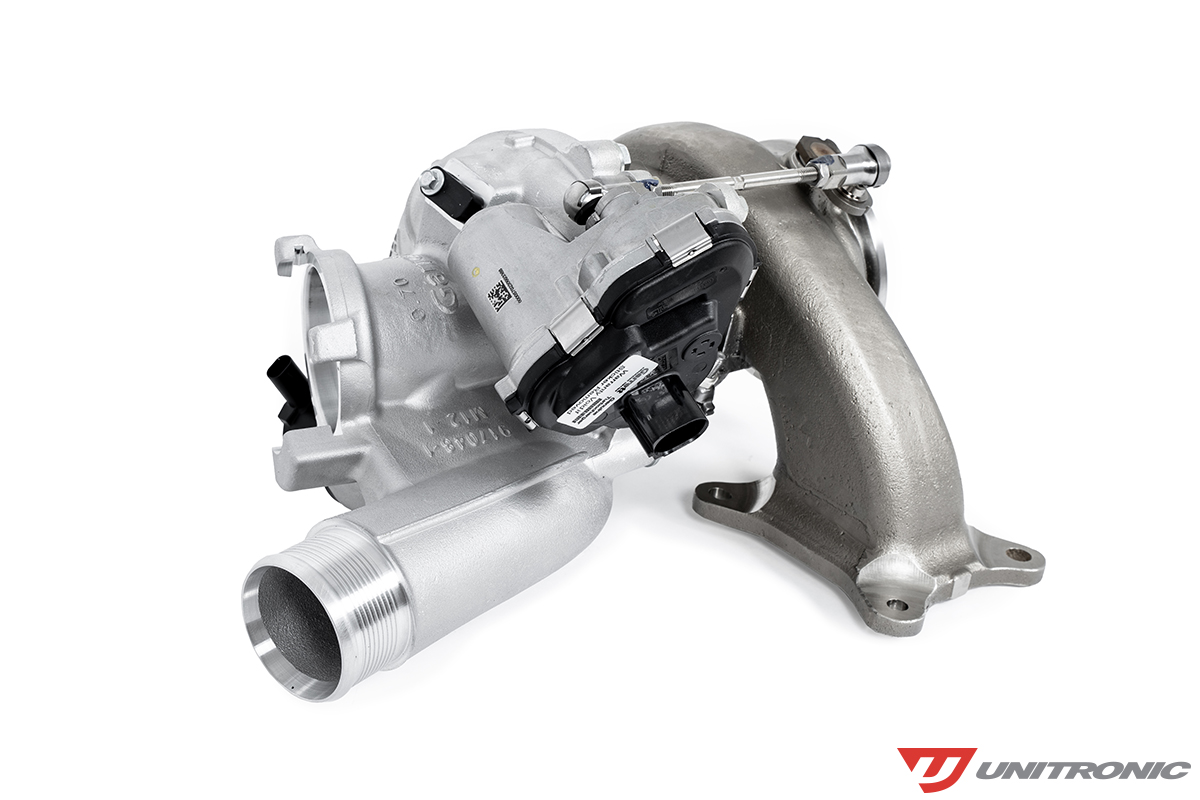

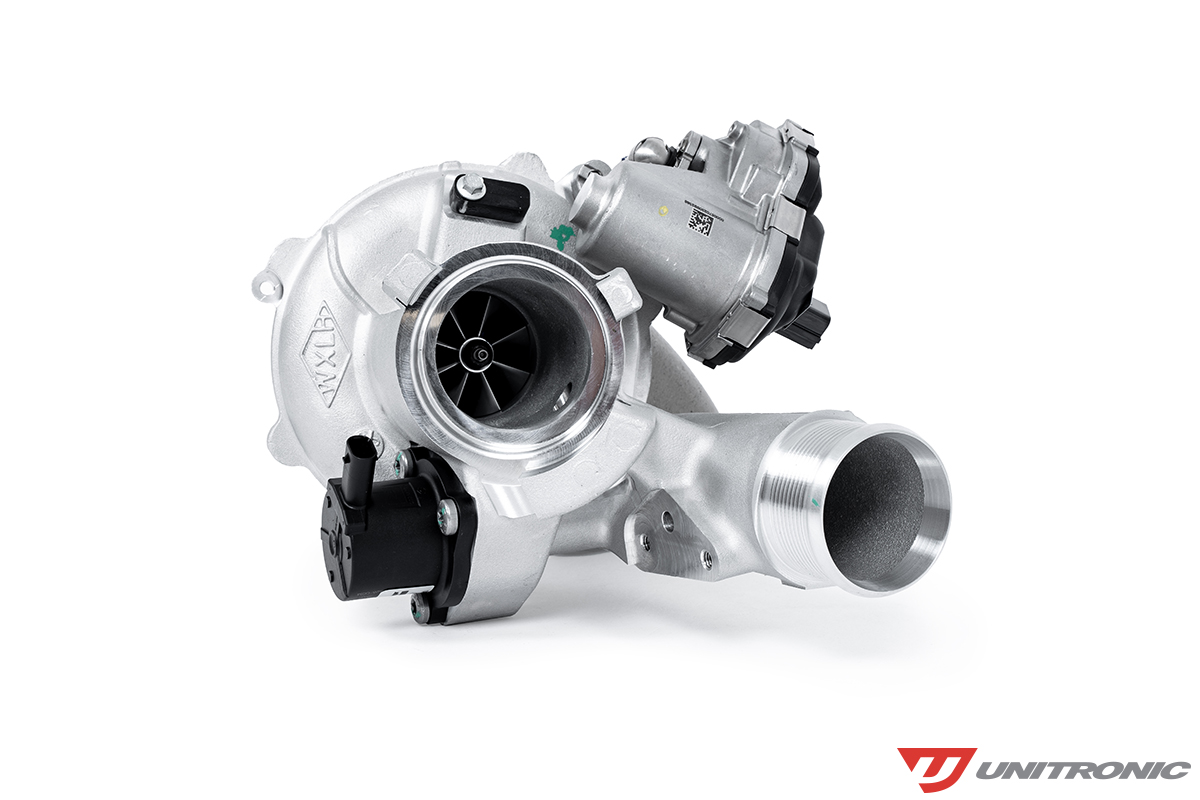

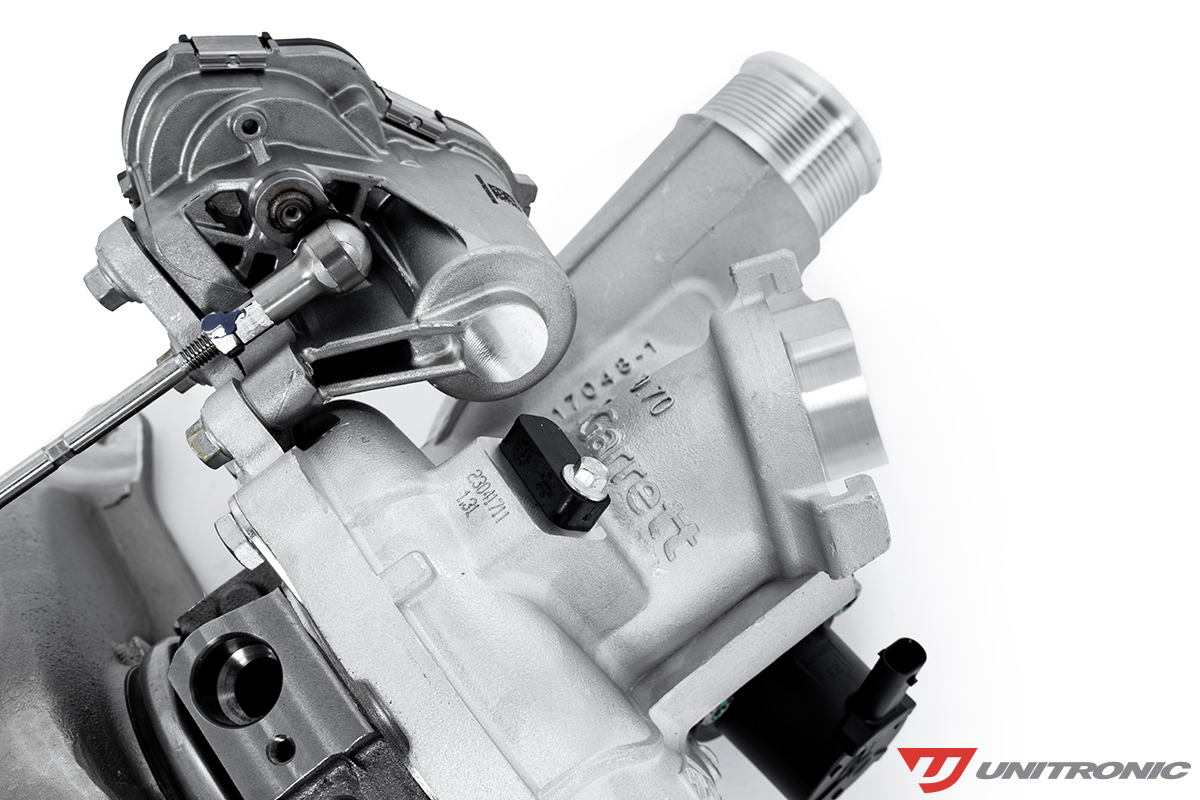

GARRETT POWERMAX TURBOCHARGER (AVAILABLE NOW)
LATEST SOFTWARE FEATURES
High-Speed Data Logging via UniCONNECT+
For customers looking to gain greater insights about their vehicle's true performance, High Speed Data Logging for the SIMOS 19.6 ECU is now built in to the latest UniCONNECT+ Application allowing enthusiasts to collect high speed data logs at the a much higher resolution than any other publicly available tools can offer.

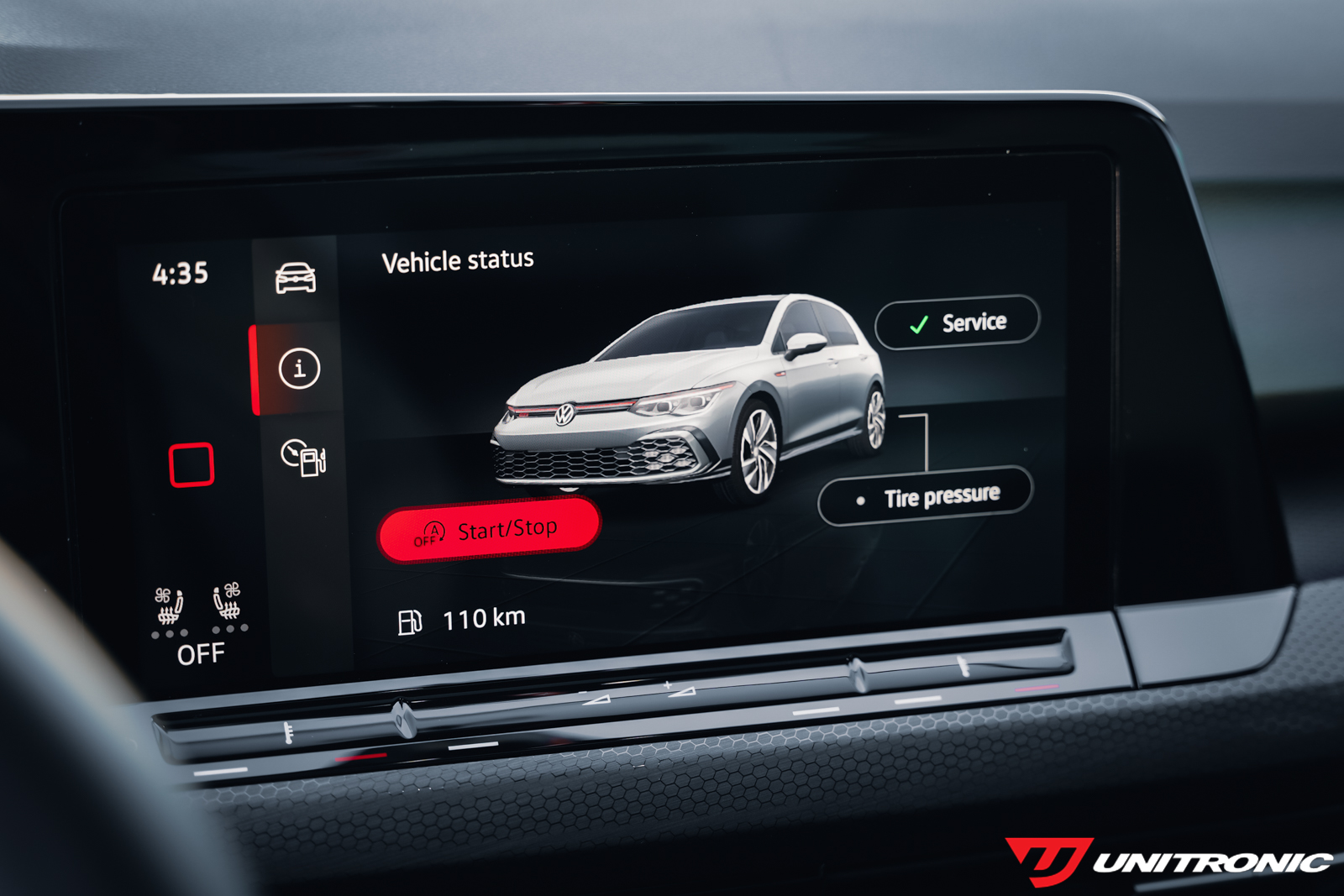

Start/Stop Memory Enabled
Unitronic Stage 3 ECU calibrations now include Start/Stop Memory for the MK8 GTI, which enables the vehicle to now remember the last set position. This feature will be rolled out for all tuned files for the MK8 GTI / R, 8Y S3 and more platforms soon.
OEM Boost Gauge Recalibrated
By popular demand, Unitronic has now recalibrated the OEM boost gauge to display gauge pressure (absolute press. minus ambient press.) instead of absolute pressure.
OEM Power Gauge Recalibrated
Unitronic has now recalibrated the OEM Power Gauge to display true engine power (in kW), which is now representative of actual power output through the rev range of your Stage 3 Performance Software.
Expanding on its extensive experience with the SIMOS controllers found in modern VW and Audi vehicles and being the first major North American tuner with Performance Software offerings for the SIMOS 19.6 equipped MK8 GTI, Unitronic Engineers wasted no time recalibrating the new SIMOS 19.6 ECU to achieve more power and torque with the new direct drop-in Garrett PowerMax Turbocharger (available through Unitronic). Unitronic Stage 3 ECU calibration optimizations include recalibrated boost regulation, optimized ignition timing, lambda, camshaft timing, and much more in order to safely develop more power with this impressive new turbocharger.

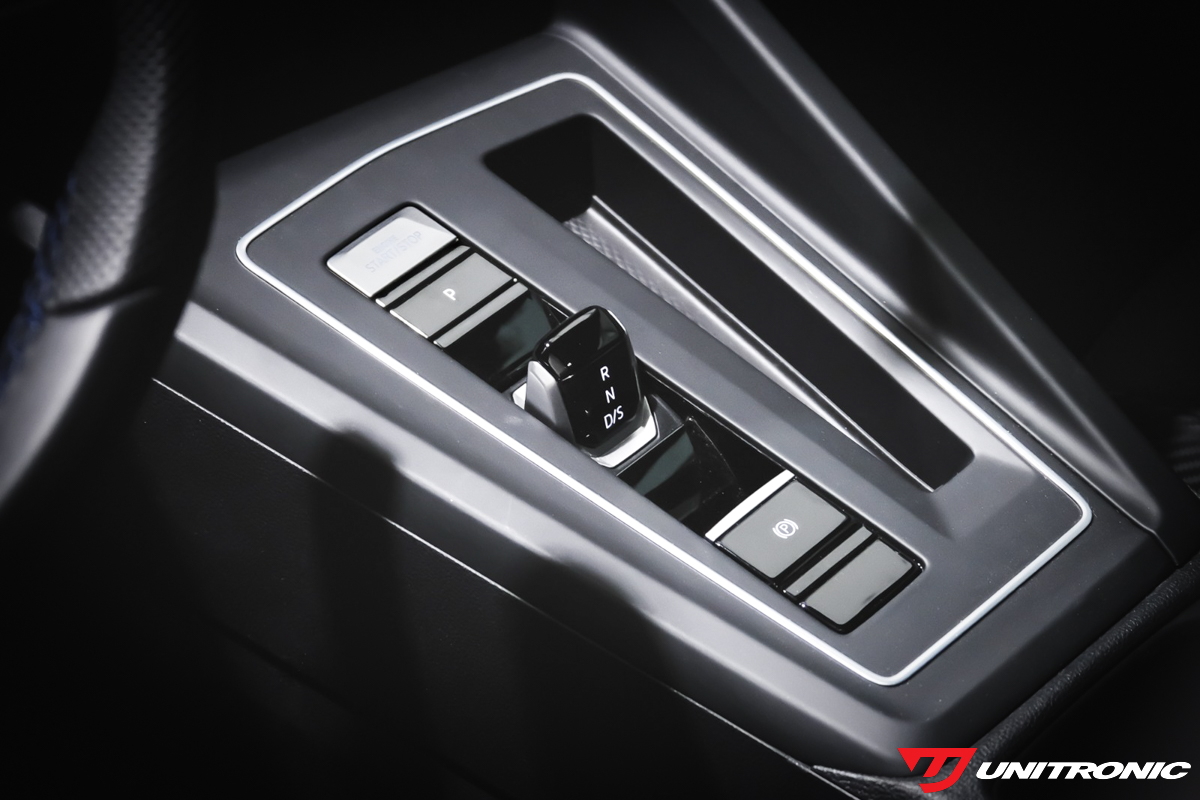

DQ381.2 STAGE 3 TRANSMISSION TUNING
Unitronic is proud to release its Stage 3 TCU Performance Software for the DQ381.2 transmission, which is calibrated for use specifically with Unitronic's Stage 3 ECU Performance Software. Unitronic Engineers identified gearbox originating torque limitations on the TCU side of the DQ381.2 transmission. In order to overcome these limitations, while ensuring proper torque management and operation, TCU Performance Software is required for DSG vehicles. Stage 3 TCU Performance Software calibrations increase the torque limiter and increase clutch clamping pressure in order to allow the capability of higher clutch torque for seamless operation which further enhances the user experience. Customers with locked BLxxx401 TCU types are not yet eligible for this upgrade however the team of Unitronic Software Engineers is continuously working towards providing a solution.
FUTURE DEVELOPMENT
Unitronic is proud to offer tuning solutions ranging from +95HP (Stage 1) to +204HP (Stage 3) for the MK8 GTI, with several stages in between, all supported by our UniCONNECT+ cable with a wide range of supporting Hardware Upgrades. Unitronic is also committed to delivering unparalleled support for more platforms equipped with the 2.0TSI EA888 EVO4 engine. Customers can soon expect even more support for E85, including our Flex Fuel Hardware and Software packages. Supporting fuel system upgrades will also be available in order to safely and reliably deliver the power using E85.
AVAILABLE HARDWARE UPGRADES

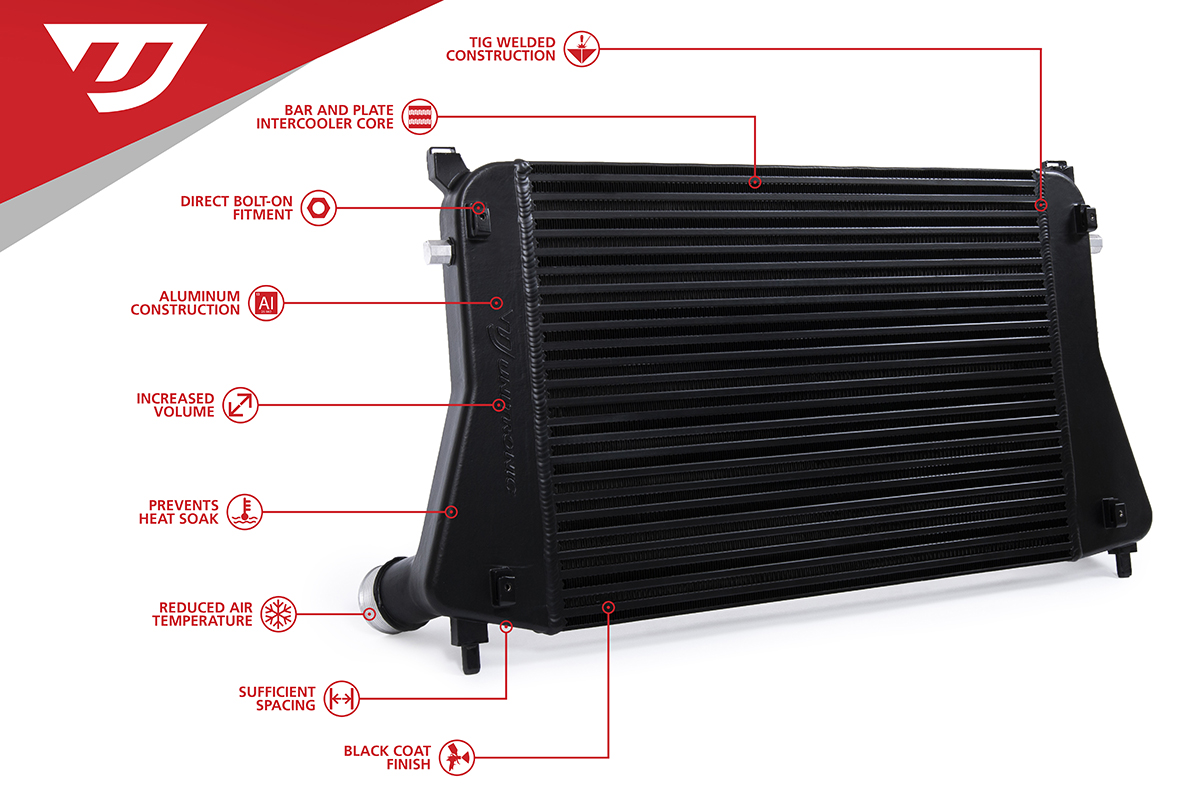

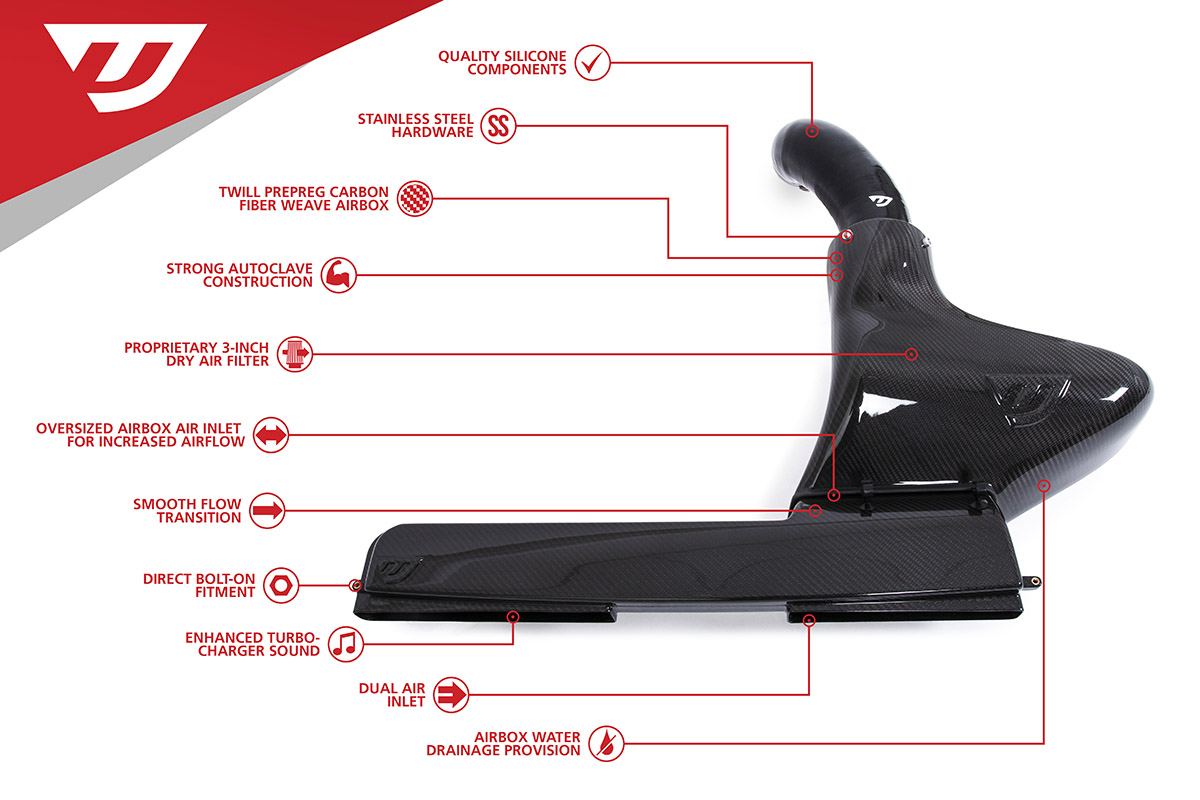

Aided by empirical data collection and instrumentation, it's common for Unitronic Engineers to uncover factory hard part limitations where such inhibits maximum performance either through efficiency short-comings or air-flow restrictions. In the case of the 2.0TSI MQB EVO4 engines, Unitronic found several areas where the factory hardware would not keep up with the demands of a tuned vehicle. Starting from the front end, the Unitronic Carbon Fiber Intake System and Air Duct help draw large amounts of cool air into the engine which allows the turbocharger to work more efficiently. Similarly, the factory intercooler loses its ability to keep charge air temperature at reasonable levels before the ECU's logic intervenes to reduce output due to high IATs. The Unitronic Intercooler Upgrade features a core which is 64% larger than stock and in-turn, helps drastically reduce the effects of heat soak in order to keep charge air temperatures low and develop more power.

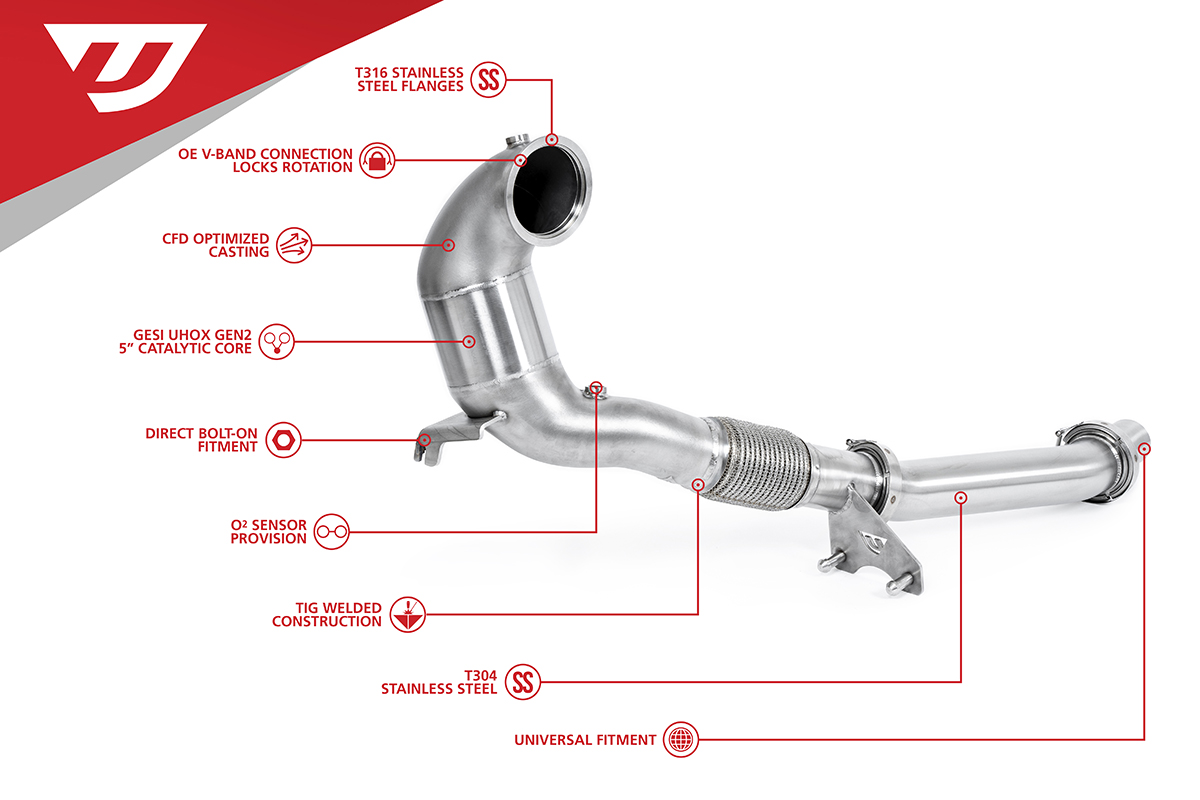

In order to handle all this additional power, Unitronic has developed its Performance Downpipe for 2.0TSI EVO4 vehicles. Featuring a 5" GESI UHOX 400cpsi Catalytic Converter and CFD Optimized Upper Castings, this Downpipe helps alleviate downstream restrictions and optimize turbocharger performance. Going one step further, the MK8 GTI Cat-Back Exhaust System is also available. This exhaust system features premium Stainless Steel construction, v-band fasteners, customizable tips and offers maximum performance, while maintaining a comfortable but enhanced exhaust tone which isn't obtrusive inside the cabin.

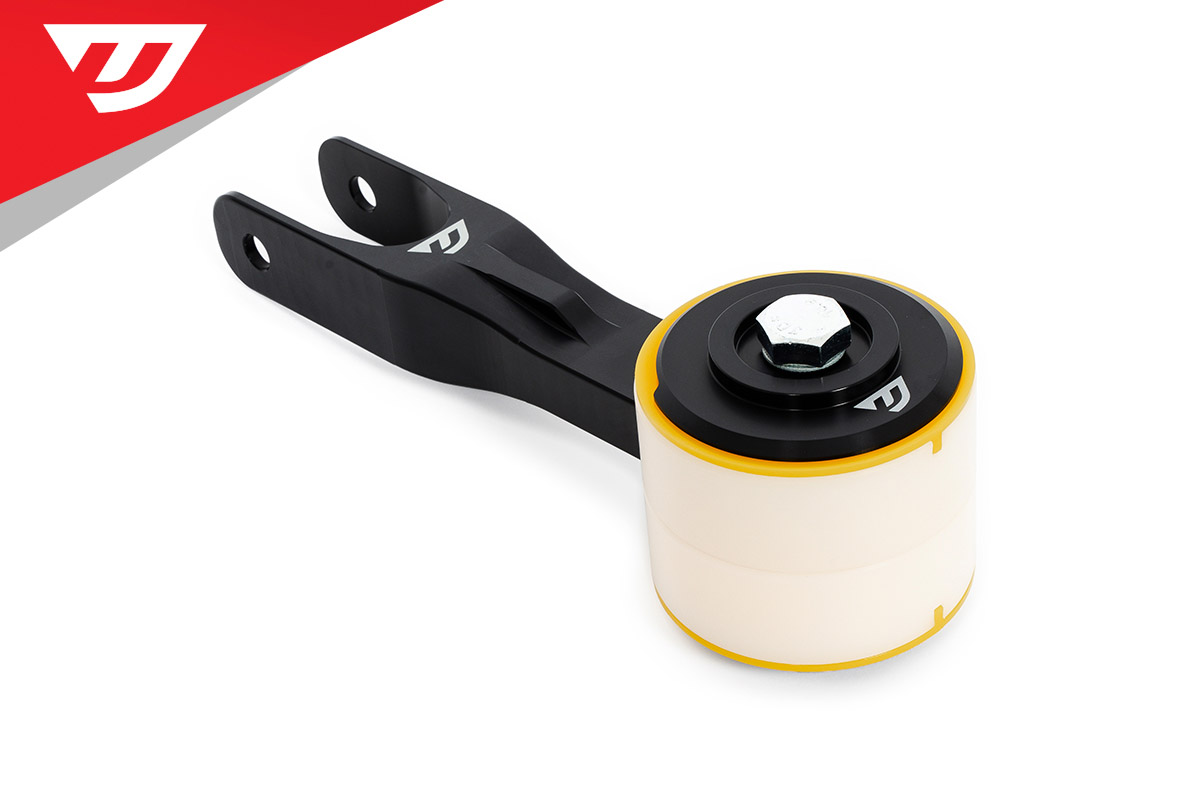

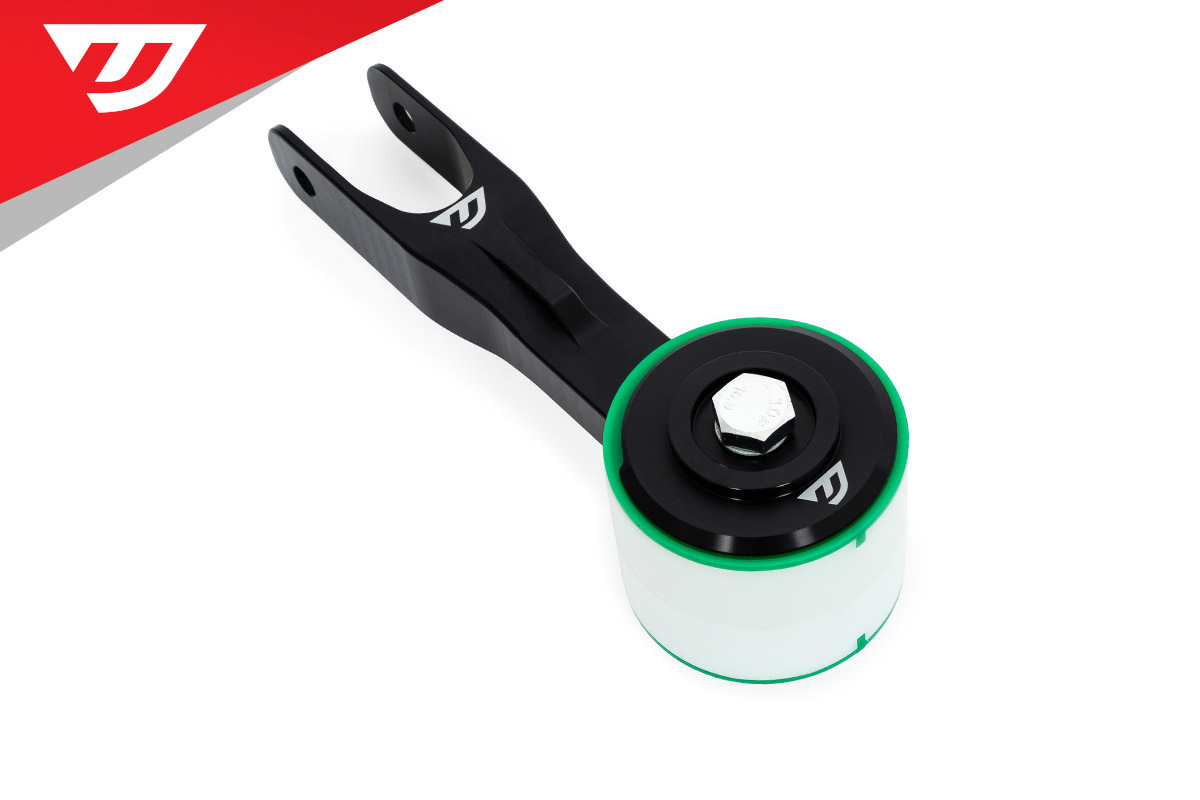

In order to help put all this power down and virtually eliminate the wheel hop and drivetrain slop present with the factory style mount, the Unitronic Dogbone Mount Upgrade is available for DQ381 or MQ350 equipped vehicles. Featuring a unique design with street or race polyurethane bushings, this upgrade improves drivetrain stability in order to help withstand the forces present during hard launches or demanding driving scenarios.
ECU SOFTWARE FEATURES
Optimized Responsiveness, Smoothness, Drivability, and Comfort
Unitronic’s ECU calibrations are engineered to improve engine response and reduce low-end lag. Unitronic’s Performance Software has gained worldwide recognition and is well known for its broad powerband, with smooth power delivery, maximizing responsiveness and “area under the curve”, under normal and hard acceleration.
Ignition Timing Precisely Calibrated for Higher Octane Fuel
Engine calibration optimized to take advantage of higher fuel quality to extract maximum energy from the combustion. Therefore, when using a higher octane fuel, more power and better fuel efficiency will be achieved.
Start/Stop Memory Enabled
Unitronic ECU calibrations now include Start/Stop Memory, which enables the vehicle to now remember the last set position. This feature will be rolled out for all tuned files for the MK8 GTI / R, 8Y S3 and more platforms soon.
High-Speed Data Logging via UniCONNECT+
For customers looking to gain greater insights about their vehicle's true performance, High Speed Data Logging for the SIMOS 19.6 ECU is now built in to the latest UniCONNECT+ Application allowing enthusiasts to collect high speed data logs at the a much higher resolution than any other publicly available tools can offer.
OEM Boost Gauge Recalibrated
By popular demand, Unitronic has now recalibrated the OEM boost gauge to display gauge pressure (absolute press. minus ambient press.) instead of absolute pressure.
OEM Power Gauge Recalibrated
Unitronic has now recalibrated the OEM Power Gauge to display true engine power (in kW), which is now representative of actual power output through the rev range of your Stage 3 Performance Software.
Optimized Maximum Output
Unitronic’s ECU Calibrators deliver the maximum power output while staying within the operational limits of the factory engine and drivetrain components. Specifically, this results in the highest engine performance without sacrificing the reliability of the engine, turbocharger, or other engine and drivetrain components.
Factory Safety Limiters Retained
OEM “fail safes” are retained within the ECU calibration. Close monitoring of all operation parameters ensures that engine operation stays within factory components limits, resulting in reliability.
Power Delivery Perfectly Optimized Throughout the Power Band
Aligned with the OEM strategy, the calibration is designed to offer a large flat torque plateau to provide a smooth and linear power band. Maximum torque output is achieved sooner and maintained longer which creates a broader torque plateau and greater area under the curve. This results in an improved acceleration and optimal engine operation.
Speed Governor Removed
Vehicle speed limiter within ECU is removed. (Subject to transmission rotational speed limit.)
Improved Fuel Efficiency
Optimized timing and injection in cruising condition allows for an improved fuel efficiency, under normalized driving conditions.
Engineered with Strict Industry Standards
With over 10 years of experience with Bosch and Siemens engine management systems and calibrations, Unitronic is able to utilize its expertise, industry leading tools and equipment to ensure an optimal calibration; delivering maximum performance, while maintaining complete OEM-like reliability and drivability.
Extensively Tested Under Various Driving Conditions
Development begins using Unitronic’s in-house Maha Chassis dyno housed in an environmentally controlled cell; closely monitoring a plethora of operational data, utilizing industry leading calibration tools and resources. Beta calibrations are then tested in street and track scenarios, using multiple cars under various driving conditions. This engine calibration strategy ensures Unitronic Performance Software delivers maximum performance, OEM-like reliability and drivability anywhere in the world. Unitronic Performance Software is only released to its Clients once development is thoroughly completed in accordance to Unitronic’s strict standards.
TCU SOFTWARE FEATURES
End-User Programmable with UniCONNECT+
Flash your TCU from the comfort of your own home or garage. Within minutes (approximately 70-seconds to be exact on this platform), you'll be enjoying an entirely transformed driving experience.
Optimized D & Sport Modes
D-mode is optimized for everyday daily driving and economy, while S-mode is optimized for faster acceleration.
Increased Clutch Clamping Pressure
Clutch clamping pressure increased in order to meet the power demands of Unitronic Stage 3 ECU calibrations.
Advanced Torque Management
Unitronic has calibrations available for limited torque and full torque levels when Launch Control (AMAX) is engaged. Limited (low) torque calibrations will limit torque in 1st gear, which is ideal and optimized for use on true street prepped car launching on an unprepped street-like surface with street tires with little to no drivetrain upgrades. Full torque calibrations will provide maximum torque for launching in ideal conditions like on a prepped/glued race track surface with drag radials or slicks and using drivetrain upgrades like a Dogbone Mount.
Quicker Gear Shifts
Unitronic's TCU Performance Software calibration enhances the gear shift speeds making them up to 70% quicker.
Gear Display Enabled in D and S Mode
Gear Display is enabled, allowing the driver to see the current gear in both D- and S-mode on the Virtual Cockpit / MFD.
(D1, D2, etc. & S1, S2, S3, etc.)
Dual Setpoint Adjustable Launch Control
Unitronic has adjusted the launch control RPM setpoints to allow for quicker acceleration off the launch control. Dual-stage launch control allows users to choose between two different launch control RPM setpoints based on the current conditions observed. (surface conditions, tires, etc.) Launch Control Setpoint 1 is activated at 100% pedal position, without engaging the kick-down switch. Launch Control Setpoint 2 is activated at "110%" pedal position. (100% pedal position with the kick-down switch engaged)
This platform is fully supported with Unitronic’s UniCONNECT+ cable, empowering you to tune your vehicle from the comfort of your own home or garage. The cable and associated software allows you to install, and upgrade, your new Unitronic ECU tunes, flash back to stock file in addition to reading and clearing DTCs. This is a perfect option for people who like to be autonomous or who don't have a Unitronic Authorized Dealer nearby!
APPLICATIONS
2022+ VW GTI 2.0TSI EA888 EVO4
*Subject to ECU box code availability.
